Open eLMS All

Change Traffic light system for next Due Date

Edit the configuration key below to change functionality within the system, there are over 200 such settings in the system.

📘 Instructions

Name

Key

Default Value

Description

Traffic light system for next Due Date

nextDueTrafficLight

4

When a line manager views the 'Check Progress' table, green indicates the 'Next Due date' is more than 4 weeks from when viewed, amber represents the 'Next Due date' to be less than 4 weeks away, whilst red signifies the due date has been passed (overdue). The 4 week period can be customised here - enter the desired number of weeks.

Changing Configuration Settings

Follow the steps below to change any settings

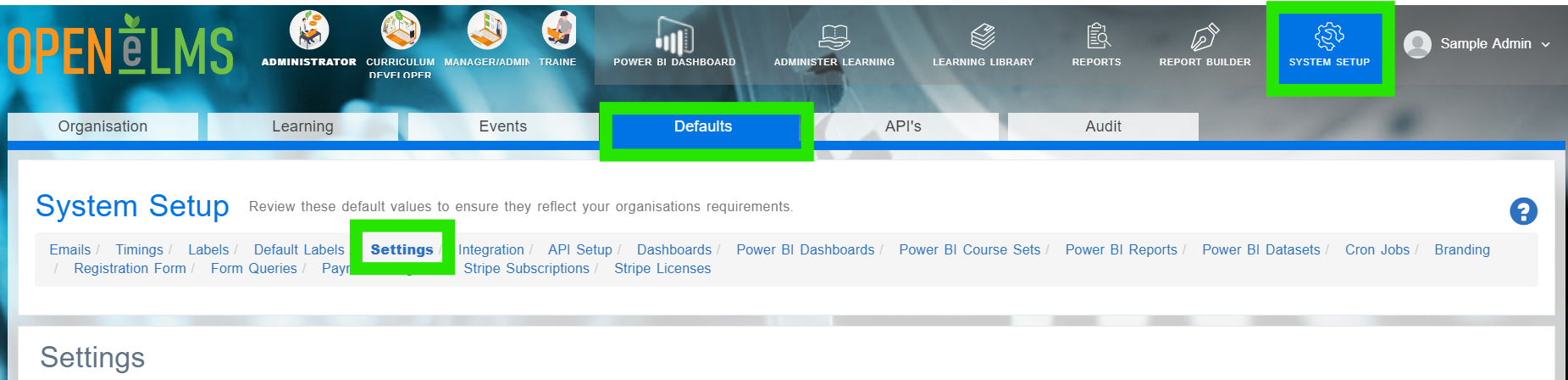

  1. Login as an Administrator and go to System Setup/Defaults/Settings.


  2. Search in the Name column for the key listed in the above table.

  3. Click on Edit.

  4. Scroll down and find the correct key in the settings category.

  5. Edit the Configuration value to the number of weeks that you want. Default weeks are 4.

  6. This will change the number of weeks on which the Traffic Light system is working.
